✨ Arduino and RGB 8x8 LED Matrix

In this project, the author will show how you can connect a full-color 8x8 LED matrix to the Arduino. The matrix itself has 32 inputs: 8 anodes, 8 red cathodes, 8 green and 8 blue. At the same time to control the matrix will be involved only 3 outputs on the Arduino. There is no magic here, but there are 4 shift registers 74HC595.
You can read more about using 74HC59 with Arduino in the instructions. Using the shift register 74HC595 to increase the number of outputs.

One register gives us 8 outputs since our matrix has 32 inputs, the project uses the cascading technology of shift registers. We will need 4 registers 74HC59, while the number of connections to the Arduino will not change and 3 outputs to the Arduino will be involved.

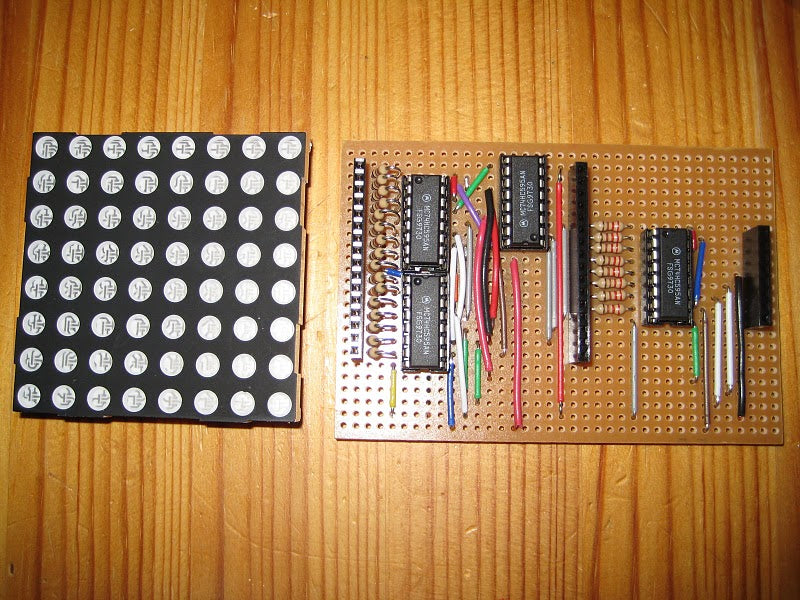

During the assembly process on the rapid prototyping board, an interesting feature of the LED matrix was found. Forward voltage for red LEDs is slightly lower than for green and blue. The output was found in connecting the red cathodes through the limiting resistors of 330 ohms, whereas the blue and green cathodes were connected through a 220-ohm resistor.

In the diagram, the blue, green, and yellow wires go to the outputs of the Arduino.

As the author writes, his control code for Arduino almost completely repeats the code of another author, which he leads.

The LED control uses an internal Interrupt Service Routine (ISR) handler. You can read more about interruptions on the Arduino here (English). Using an interrupt handler allows us to update the matrix outside the main program loop, as if in a parallel process.

Each RGB-LED consists of three LEDs: red, green and blue. Each LED has two states: "on" and "off". If we include two colors, we get intermediate colors, but there are only seven of them (R, G, B, RG, RB, GB, RGB). In order to get a wide range of colors, pulse width modulation (PWM) is used.

In addition to the video, here the author went even further - he manages the assembly of the program described in the Processing language.

 Code

#define __spi_clock 13 // SCK - hardware SPI
#define __spi_latch 10
#define __spi_data 11 // MOSI - hardware SPI
#define __spi_data_in 12 // MISO - hardware SPI (unused)
#define __display_enable 9
#define __rows 8
#define __max_row __rows-1
#define __leds_per_row 8
#define __max_led __leds_per_row-1
#define __brightness_levels 32 // 0...15 above 28 is bad for ISR ( move to timer1, lower irq freq ! )
#define __max_brightness __brightness_levels-1
#define __fade_delay 4

#define __TIMER1_MAX 0xFFFF // 16 bit CTR
#define __TIMER1_CNT 0x0130 // 32 levels --> 0x0130; 38 --> 0x0157 (flicker)
#define __TIMER2_MAX 0xFF // 8 bit CTR
#define __TIMER2_CNT 0xFF // max 28 levels !
#include <avr/interrupt.h>
#include <avr/io.h>
#include <stdint.h>

byte brightness_red[__leds_per_row][__rows];
byte brightness_green[__leds_per_row][__rows];
byte brightness_blue[__leds_per_row][__rows];

ISR(TIMER1_OVF_vect) {
//TCNT2 = __TIMER2_MAX - __TIMER2_CNT; // precharge TIMER2 to maximize ISR time --> max led brightness
TCNT1 = __TIMER1_MAX - __TIMER1_CNT;
byte cycle;

digitalWrite(__display_enable,LOW); // enable display inside ISR

for(cycle = 0; cycle < __max_brightness; cycle++) {
byte led;
byte row = B00000000; // row: current source. on when (1)
byte red; // current sinker when on (0)
byte green; // current sinker when on (0)
byte blue; // current sinker when on (0)

for(row = 0; row <= __max_row; row++) {

red = B11111111; // off
green = B11111111; // off
blue = B11111111; // off

for(led = 0; led <= __max_led; led++) {
if(cycle < brightness_red[row][led]) {
red &= ~(1<<led);
}
if(cycle < brightness_green[row][led]) {
green &= ~(1<<led);
}
if(cycle < brightness_blue[row][led]) {
blue &= ~(1<<led);
}
}

digitalWrite(__spi_latch,LOW);
spi_transfer(blue);
spi_transfer(green);
spi_transfer(red);
spi_transfer(B00000001<<row);
digitalWrite(__spi_latch,HIGH);
digitalWrite(__spi_latch,LOW);
}
}

/*
// turn off all leds when ISR is not running
// otherwise leds will flash to full brightness when 1111 is set, which
// stays on outside the ISR !
digitalWrite(__spi_latch,LOW);
spi_transfer(B11111111); // blue off
spi_transfer(B11111111); // green off
spi_transfer(B11111111); // red off
spi_transfer(B00000000); // rows off
digitalWrite(__spi_latch,HIGH);
digitalWrite(__spi_latch,LOW);
*/
digitalWrite(__display_enable,HIGH); // disable display outside ISR
}


void setup(void) {
//Serial.begin(9600);
randomSeed(555);
byte ctr1;
byte ctr2;

pinMode(__spi_clock,OUTPUT);
pinMode(__spi_latch,OUTPUT);
pinMode(__spi_data,OUTPUT);
pinMode(__spi_data_in,INPUT);
pinMode(__display_enable,OUTPUT);
digitalWrite(__spi_latch,LOW);
digitalWrite(__spi_data,LOW);
digitalWrite(__spi_clock,LOW);

setup_hardware_spi();
delay(10);
set_matrix_rgb(0,0,0);
//setup_timer2_ovf();
setup_timer1_ovf();
// display enable/disable is done inside the ISR !
}


void loop(void) {

int ctr;
for(ctr=0; ctr < 4; ctr++) {
fader();
}
for(ctr=0; ctr < 2; ctr++) {
fader_hue();
}
for(ctr=0; ctr < 1000; ctr++) {
color_wave(30);
}
for(ctr=0; ctr < 100; ctr++) {
rainbow();
}
for(ctr=0; ctr < 10; ctr++) {
set_matrix_hue(80);
}
for(ctr=0; ctr < 1; ctr++) {
matrix_test();
}
set_matrix_rgb(0,0,0);
for(ctr=0; ctr < 250; ctr++) {
matrix_heart(0);
}
for(ctr=0; ctr < 4; ctr++) {
matrix_heart_2();
}
for(ctr=0; ctr < 10000; ctr++) {
random_leds();
}
smile_blink(200,8,100);
delay(2500);
explode(300,150);
}


byte spi_transfer(byte data)
{
SPDR = data; // Start the transmission
while (!(SPSR & (1<<SPIF))) // Wait the end of the transmission
{
};
return SPDR; // return the received byte, we don't need that
}


void set_led_red(byte row, byte led, byte red) {
brightness_red[row][led] = red;
}


void set_led_green(byte row, byte led, byte green) {
brightness_green[row][led] = green;
}


void set_led_blue(byte row, byte led, byte blue) {
brightness_blue[row][led] = blue;
}


void set_led_rgb(byte row, byte led, byte red, byte green, byte blue) {
set_led_red(row,led,red);
set_led_green(row,led,green);
set_led_blue(row,led,blue);
}


void set_matrix_rgb(byte red, byte green, byte blue) {
byte ctr1;
byte ctr2;
for(ctr2 = 0; ctr2 <= __max_row; ctr2++) {
for(ctr1 = 0; ctr1 <= __max_led; ctr1++) {
set_led_rgb(ctr2,ctr1,red,green,blue);
}
}
}


void set_row_rgb(byte row, byte red, byte green, byte blue) {
byte ctr1;
for(ctr1 = 0; ctr1 <= __max_led; ctr1++) {
set_led_rgb(row,ctr1,red,green,blue);
}
}


void set_column_rgb(byte column, byte red, byte green, byte blue) {
byte ctr1;
for(ctr1 = 0; ctr1 <= __max_row; ctr1++) {
set_led_rgb(ctr1,column,red,green,blue);
}
}


void set_row_hue(byte row, int hue) {
byte ctr1;
for(ctr1 = 0; ctr1 <= __max_led; ctr1++) {
set_led_hue(row,ctr1,hue);
}
}


void set_column_hue(byte column, int hue) {
byte ctr1;
for(ctr1 = 0; ctr1 <= __max_row; ctr1++) {
set_led_hue(ctr1,column,hue);
}
}


void set_matrix_hue(int hue) {
byte ctr1;
byte ctr2;
for(ctr2 = 0; ctr2 <= __max_row; ctr2++) {
for(ctr1 = 0; ctr1 <= __max_led; ctr1++) {
set_led_hue(ctr2,ctr1,hue);
}
}
}



void fader(void) {
byte ctr1;
byte row;
byte led;

for(ctr1 = 0; ctr1 <= __max_brightness; ctr1++) {
for(row = 0; row <= __max_row; row++) {
for(led = 0; led <= __max_led; led++) {
set_led_rgb(row,led,ctr1,ctr1,ctr1);
}
}
delay(__fade_delay);
}

for(ctr1 = __max_brightness; (ctr1 >= 0) & (ctr1 != 255); ctr1--) {
for(row = 0; row <= __max_row; row++) {
for(led = 0; led <= __max_led; led++) {
set_led_rgb(row,led,ctr1,ctr1,ctr1);
}
}
delay(__fade_delay);
}
}


void fader_hue(void) {
int ctr1;
byte row;
byte led;

for(ctr1 = 0; ctr1 < 360; ctr1=ctr1+3) {
set_matrix_hue((float)(ctr1));
delay(__fade_delay);
}
}


void no_irq_fader(void) {
byte ctr1;
byte row;
byte led;
byte ctr2;

for(ctr1 = 0; ctr1 <= __max_brightness; ctr1++) {
for(row = 0; row <= __max_row; row++) {
for(led = 0; led <= __max_led; led++) {
set_led_rgb(row,led,ctr1,ctr1,ctr1);
}
}
for(ctr2 = 0; ctr2 <= __fade_delay; ctr2++) {
no_irq_pwm();
}
}

for(ctr1 = __max_brightness; (ctr1 >= 0) & (ctr1 != 255); ctr1--) {
for(row = 0; row <= __max_row; row++) {
for(led = 0; led <= __max_led; led++) {
set_led_rgb(row,led,ctr1,ctr1,ctr1);
}
}
for(ctr2 = 0; ctr2 <= __fade_delay; ctr2++) {
no_irq_pwm();
}
}
}


void no_irq_pwm(void) {

byte cycle;

for(cycle = 0; cycle < __max_brightness; cycle++) {
byte led;
byte row = B00000000; // row: current source. on when (1)
byte red; // current sinker when on (0)
byte green; // current sinker when on (0)
byte blue; // current sinker when on (0)

for(row = 0; row <= __max_row; row++) {

red = B11111111; // off
green = B11111111; // off
blue = B11111111; // off

for(led = 0; led <= __max_led; led++) {
if(cycle < brightness_red[row][led]) {
red &= ~(1<<led);
}
if(cycle < brightness_green[row][led]) {
green &= ~(1<<led);
}
if(cycle < brightness_blue[row][led]) {
blue &= ~(1<<led);
}
}

digitalWrite(__spi_latch,LOW);
spi_transfer(blue);
spi_transfer(green);
spi_transfer(red);
spi_transfer(B00000001<<row);
digitalWrite(__spi_latch,HIGH);
digitalWrite(__spi_latch,LOW);

/*
Serial.print(B00000001<<row,BIN);
Serial.print(" - ");
Serial.print(red,BIN);
Serial.print(" - ");
Serial.print(green,BIN);
Serial.print(" - ");
Serial.println(blue,BIN);
*/
}

}

}


void set_led_hue(byte row, byte led, int hue) {

// see wikipeda: HSV
float S=100.0,V=100.0,s=S/100.0,v=V/100.0,h_i,f,p,q,t,R,G,B;

hue = hue%360;
h_i = hue/60;
f = (float)(hue)/60.0 - h_i;
p = v*(1-s);
q = v*(1-s*f);
t = v*(1-s*(1-f));

if ( h_i == 0 ) {
R = v;
G = t;
B = p;
}
else if ( h_i == 1 ) {
R = q;
G = v;
B = p;
}
else if ( h_i == 2 ) {
R = p;
G = v;
B = t;
}
else if ( h_i == 3 ) {
R = p;
G = q;
B = v;
}
else if ( h_i == 4 ) {
R = t;
G = p;
B = v;
}
else {
R = v;
G = p;
B = q;
}

set_led_rgb(row,led,byte(R*(float)(__max_brightness)),byte(G*(float)(__max_brightness)),byte(B*(float)(__max_brightness)));

/*
Serial.println(byte(R*(float)(__max_brightness)),DEC);
Serial.println(byte(G*(float)(__max_brightness)),DEC);
Serial.println(byte(B*(float)(__max_brightness)),DEC);
Serial.println("---");
*/
}


void matrix_heart(int hue) {
set_row_byte_hue(1,B00110110,hue);
set_row_byte_hue(2,B01111111,hue);
set_row_byte_hue(3,B01111111,hue);
set_row_byte_hue(4,B00111110,hue);
set_row_byte_hue(5,B00011100,hue);
set_row_byte_hue(6,B00001000,hue);
}


void matrix_test(void) {
byte ctr1;
byte ctr2;
int hue;

for(hue = 0; hue < 360; hue=hue+32) {
for(ctr2 = 0; ctr2 <= __max_row; ctr2++) {
for(ctr1 = 0; ctr1 <= __max_led; ctr1++) {
set_led_hue(ctr2,ctr1,hue);
delay(5);
}
}
}
}


void matrix_heart_2(void) {
int hue;
for(hue = 0; hue < 360; hue=hue+16) {
set_row_byte_hue(1,B00110110,hue);
set_row_byte_hue(2,B01111111,hue);
set_row_byte_hue(3,B01111111,hue);
set_row_byte_hue(4,B00111110,hue);
set_row_byte_hue(5,B00011100,hue);
set_row_byte_hue(6,B00001000,hue);
delay(3*__fade_delay);
}
}


void rainbow(void) {
byte column;
for(column = 0; column <= __max_led; column++) {
set_column_hue(column,column*50);
}
}


void color_wave(uint8_t width) {
uint8_t column;
static uint16_t shift = 0;
for(column = 0; column <= __max_led; column++) {
set_column_hue(column,column*width+shift);
}
shift++;
}


void random_leds(void) {
set_led_hue((byte)(random(__rows)),(byte)(random(__leds_per_row)),(int)(random(360)));
}


void smile_on(int hue) {
set_row_byte_hue(0,B00000000,hue);
set_row_byte_hue(1,B01100110,hue);
set_row_byte_hue(2,B01100110,hue);
set_row_byte_hue(3,B00000000,hue);
set_row_byte_hue(4,B00011000,hue);
set_row_byte_hue(5,B10011001,hue);
set_row_byte_hue(6,B01000010,hue);
set_row_byte_hue(7,B00111100,hue);
}


void smile_off(int hue) {
set_row_byte_hue(0,B00000000,hue);
set_row_byte_hue(1,B00000000,hue);
set_row_byte_hue(2,B01100110,hue);
set_row_byte_hue(3,B00000000,hue);
set_row_byte_hue(4,B00011000,hue);
set_row_byte_hue(5,B10011001,hue);
set_row_byte_hue(6,B01000010,hue);
set_row_byte_hue(7,B00111100,hue);
}


void smile_blink(int hue, byte times, int pause) {
byte ctr;
for(ctr = 0; ctr < times; ctr++) {
delay(pause);
smile_on(hue);
delay(pause);
smile_off(hue);
delay(pause);
smile_on(hue);
}
}


void explode(int hue, byte pause) {
set_row_byte_hue(0,B00000000,hue);
set_row_byte_hue(1,B00000000,hue);
set_row_byte_hue(2,B00000000,hue);
set_row_byte_hue(3,B00011000,hue);
set_row_byte_hue(4,B00011000,hue);
set_row_byte_hue(5,B00000000,hue);
set_row_byte_hue(6,B00000000,hue);
set_row_byte_hue(7,B00000000,hue);
delay(pause);
set_row_byte_hue(0,B00000000,hue);
set_row_byte_hue(1,B00000000,hue);
set_row_byte_hue(2,B00111100,hue);
set_row_byte_hue(3,B00100100,hue);
set_row_byte_hue(4,B00100100,hue);
set_row_byte_hue(5,B00111100,hue);
set_row_byte_hue(6,B00000000,hue);
set_row_byte_hue(7,B00000000,hue);
delay(pause);
set_row_byte_hue(0,B00000000,hue);
set_row_byte_hue(1,B01111110,hue);
set_row_byte_hue(2,B01000010,hue);
set_row_byte_hue(3,B01000010,hue);
set_row_byte_hue(4,B01000010,hue);
set_row_byte_hue(5,B01000010,hue);
set_row_byte_hue(6,B01111110,hue);
set_row_byte_hue(7,B00000000,hue);
delay(pause);
set_row_byte_hue(0,B11111111,hue);
set_row_byte_hue(1,B10000001,hue);
set_row_byte_hue(2,B10000001,hue);
set_row_byte_hue(3,B10000001,hue);
set_row_byte_hue(4,B10000001,hue);
set_row_byte_hue(5,B10000001,hue);
set_row_byte_hue(6,B10000001,hue);
set_row_byte_hue(7,B11111111,hue);
delay(pause);
set_matrix_rgb(0,0,0);
}


void set_row_byte_hue(byte row, byte data_byte, int hue) {
byte led;
for(led = 0; led <= __max_led; led++) {
if( (data_byte>>led)&(B00000001) ) {
set_led_hue(row,led,hue);
}
else {
set_led_rgb(row,led,0,0,0);
}
}
}


void setup_hardware_spi(void) {
byte clr;
// spi prescaler:
// SPI2X SPR1 SPR0
// 0 0 0 fosc/4
// 0 0 1 fosc/16
// 0 1 0 fosc/64
// 0 1 1 fosc/128
// 1 0 0 fosc/2
// 1 0 1 fosc/8
// 1 1 0 fosc/32
// 1 1 1 fosc/64
SPCR |= ( (1<<SPE) | (1<<MSTR) ); // enable SPI as master
//SPCR |= ( (1<<SPR1) ); // set prescaler bits
SPCR &= ~ ( (1<<SPR1) | (1<<SPR0) ); // clear prescaler bits
clr=SPSR; // clear SPI status reg
clr=SPDR; // clear SPI data reg
SPSR |= (1<<SPI2X); // set prescaler bits
//SPSR &= ~(1<<SPI2X); // clear prescaler bits
}


void setup_timer2_ovf(void) {
// Arduino runs at 16 Mhz...
// Timer Settings, for the Timer Control Register etc. , thank you internets. ATmega168 !
// Timer2 (8bit) Settings:
// Timer2 affects delay() !
// prescaler (frequency divider) values: CS22 CS21 CS20
// 0 0 0 stopped
// 0 0 1 /1 62500 Hz
// 0 1 0 /8 7813 Hz
// 0 1 1 /32 1953 Hz
// 1 0 0 /64 977 Hz
// 1 0 1 /128 488 Hz
// 1 1 0 /256 244 Hz
// 1 1 1 /1024 61 Hz
// irq_freq = 16MHz / ( 256 * prescaler )
//
// set irq to 61 Hz: CS22-bit = 1, CS21-bit = 1, CS20-bit = 1
TCCR2B |= ( (1<<CS22) | (1<<CS21) | (1<<CS20));
//TCCR2B &= ~( (1<<CS20) );
// Use normal mode
TCCR2A &= ~( (1<<WGM21) | (1<<WGM20) );
TCCR2B &= ~( (1<<WGM22) );
//Timer2 Overflow Interrupt Enable
TIMSK2 |= (1<<TOIE2);
TCNT2 = __TIMER2_MAX - __TIMER2_CNT;
// enable all interrupts
sei();
}


void setup_timer1_ovf(void) {
// Arduino runs at 16 Mhz...
// Timer1 (16bit) Settings:
// prescaler (frequency divider) values: CS12 CS11 CS10
// 0 0 0 stopped
// 0 0 1 /1
// 0 1 0 /8
// 0 1 1 /64
// 1 0 0 /256
// 1 0 1 /1024
// 1 1 0 external clock on T1 pin, falling edge
// 1 1 1 external clock on T1 pin, rising edge
//
TCCR1B &= ~ ( (1<<CS11) );
TCCR1B |= ( (1<<CS12) | (1<<CS10) );
//normal mode
TCCR1B &= ~ ( (1<<WGM13) | (1<<WGM12) );
TCCR1A &= ~ ( (1<<WGM11) | (1<<WGM10) );
//Timer1 Overflow Interrupt Enable
TIMSK1 |= (1<<TOIE1);
TCNT1 = __TIMER1_MAX - __TIMER1_CNT;
// enable all interrupts
sei();
}







Leave a comment

Name .
.
Message .

Please note, comments must be approved before they are published
